Chemical Injection Systems and Products
SpeedGoat Class 1 Division 1 Pump System
Tank Level Monitoring Included
• Class 1 Division 2: Our systems are suitable for use in Class 1 Division 2 locations.
• Tank Level Monitoring Included (no monthly subscription): The SpeedGoat comes standard with a cell modem and 10-year data plan plus access to our online Dashboard and Smartphone App, giving you the ability to monitor your chemical tanks.
• Nunchucks Rate Control: When used in conjunction with our Nunchucks Rate Control, you can independently control the mode and rate of each head. (see Nunchucks Rate Control Section)
• Auto Mode: Enter your desired quarts per day and the speed of the pump will adjust to meet the desired injection rate.
• Auto Batch Mode: Remove the need for a batch truck by injecting a specific batch amount on a set schedule.
• Calibration Mode: Rule out the effects of pressure and chemical viscosity by quickly and effortlessly fine tuning your pump displacement for more accurate injection.
• PPM Mode: Enter your desired PPM and the pump will automatically adjust the injection rate based on your flow rate.
• Temperature Control: Save Methanol by only running the pump when low temperatures require it. Set a starting temperature threshold at which the pump will begin to inject.
• RS-485/Modbus Control: Control your pump and monitor your chemical tank(s) through RS-485.
• No Leaks: Our environmentally safe design diverts any leaks past the high pressure seal back to the inlet line instead of dripping on the containment, or worse, the ground.
• Brushless Motor: Reliable, strong, and efficient 120 watt motor that maintains an accurate and consistent motor speed regardless of pressure or voltage.
• AC/Solar: Available in 120 volts AC or 12/24 volts DC for solar applications.

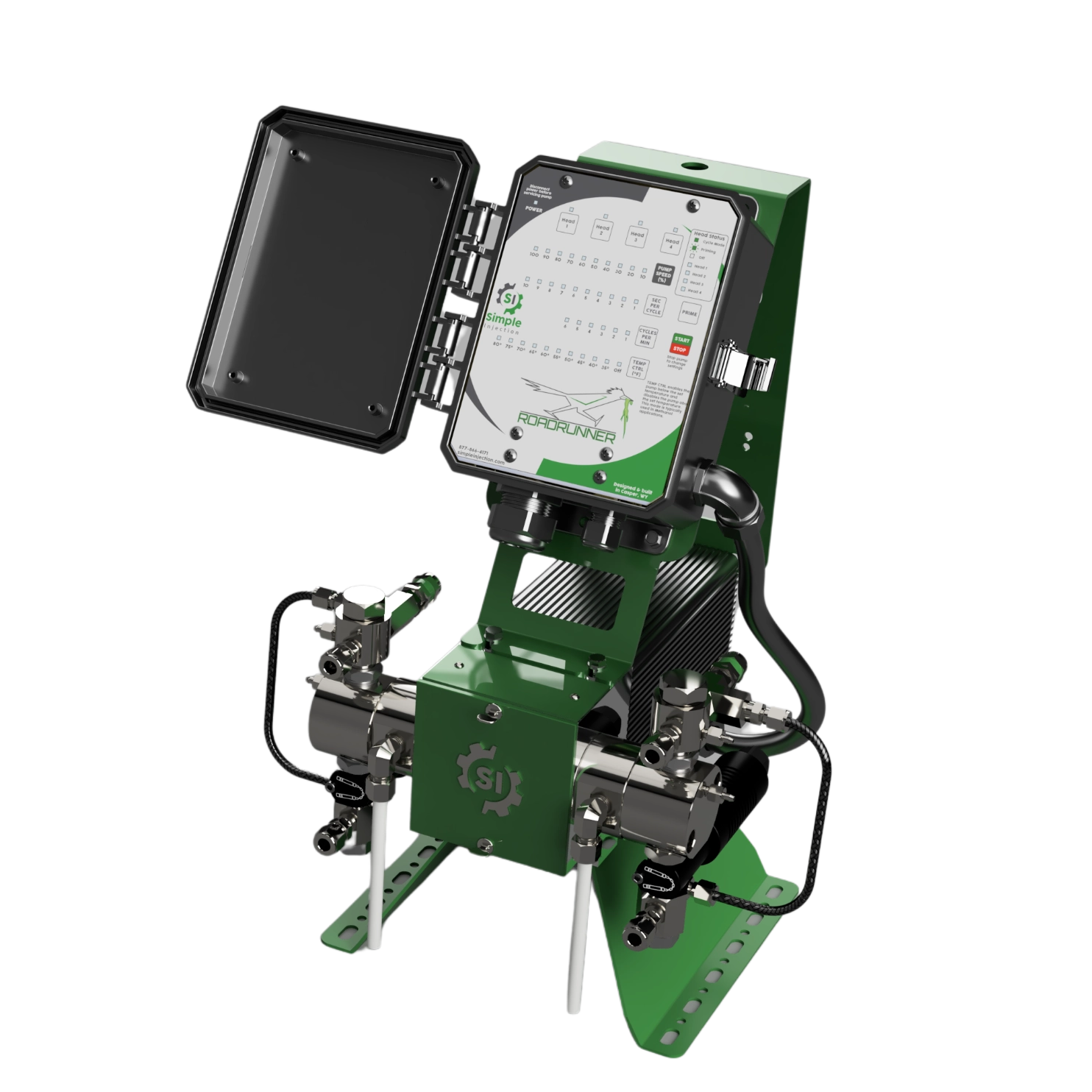

Roadrunner Class 1 Division 2 Pump System
• Class 1 Division 2: Our systems are suitable for use in Class 1 Division 2 locations.
• Nunchucks Rate Control: When used in conjunction with our Nunchucks Rate Control, you can independently control the rate of each head. (see Nunchucks Rate Control Section)
• Cycle Mode: Set the length of time the pump injects in Cycles per Minute and Seconds per Cycle.
• Variable Speed: Set the pump speed between 20-100% to fine tune your rate.
• Temperature Control: Save Methanol by only running the pump when low temperatures require it. Set a starting temperature threshold (35-60˚F) at which the pump will begin to inject.
• No Leaks: Our environmentally safe design diverts any leaks past the high pressure seal back to the inlet line instead of dripping on the containment, or worse, the ground.
• Brushless Motor: Reliable, strong, and efficient 120 watt motor that maintains an accurate and consistent motor speed regardless of pressure or voltage.
• AC/Solar: Available in 120 volts AC or 12/24 volts DC for solar applications.

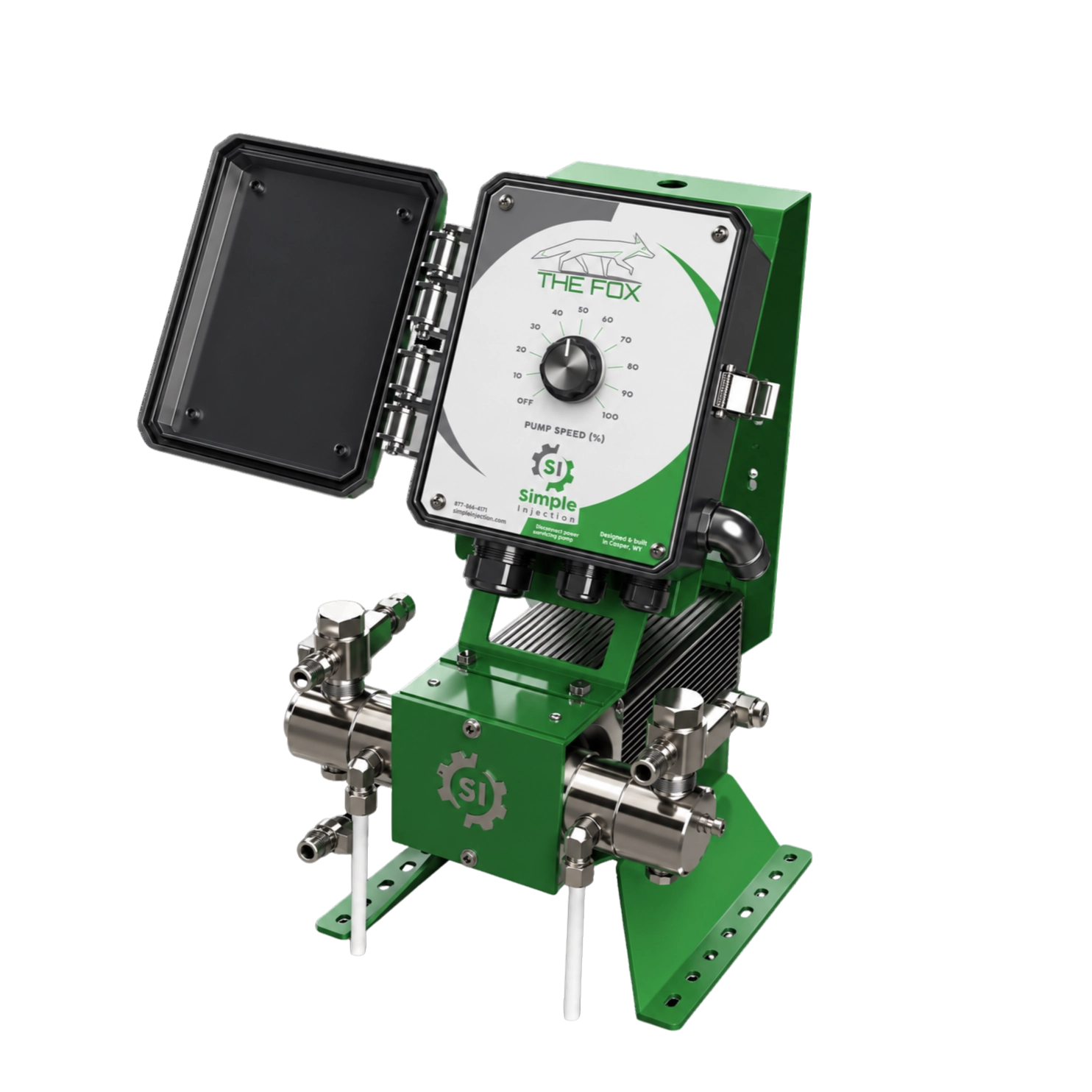

Fox Class 1 Division 2 Pump System
• Class 1 Division 2: Our systems are suitable for use in Class 1 Division 2 locations.
• Variable Speed: Easily set the pump speed between 10-100% to fine tune your rate by using the dial located on the front of the controller.
• No Leaks: Our environmentally safe design diverts any leaks past the high pressure seal back to the inlet line instead of dripping on the containment, or worse, the ground.
• Brushless Motor: Reliable, strong, and efficient 120 watt motor that maintains an accurate and consistent motor speed regardless of pressure or voltage.
• AC/Solar: Available in 120 volts AC or 12/24 volts DC for solar applications.
Nunchucks Rate Control (Patent Pending)
When used with the SpeedGoat or Roadrunner, Nunchucks Rate Control allows you to independently control each head on your dual head pump!
• No More Stroke Adjustment: With Nunchucks Rate Control you can easily set two different injection rates on a dual head pump.
• Independent Pump Modes: When using a dual head pump, Nunchucks Rate Control allows you to operate each pump head in a different pump mode.
• Flow Indicator Light: External LEDs indicate which heads are currently injecting.
Examples of What You Can Do With Nunchucks Rate Control
• Multiple Rates: Set Head 1 to inject 5 quarts/day and Head 2 to inject 10 quarts/day
• Multiple Modes: Set Head 1 to operate in Auto Mode at 40 quarts/day while Head 2 operates in Auto Batch Mode and injects 10 quarts every day at 9:00 am.
• Turn Off One Head: Easily stop one head from injecting while the other head continues injecting.
Pump Specifications
• Dual Energized Seals: No need to tighten packing. Our pump uses energized teflon seals. Not only are they compatible with most chemicals but they are designed to last.
• No Leaks: Our environmentally safe design diverts any leaks past the high pressure seal back to the suction line instead of dripping on your containment, or worse, the ground.
• Ceramic Plungers: No more scored plungers that damage your seals. Our solid ceramic plungers not only extend the life of the seals but also have high chemical compatibility.
• Titanium Pump Heads: Our pump heads are corrosion resistant stainless steel with a long lasting Titanium Nitride coating. Look for the gold!
• Brushless Motor: We use a reliable, strong, and efficient 120 watt motor that maintains an accurate and consistent motor speed regardless of pressure or voltage.
• Easy to Service: Our pump was designed to be reliable and easily serviced.
