Roadrunner Pump SystemRoadrunner Pump System Logo
Chemical Injection Pump SystemsClass 1 Division 2 Certified

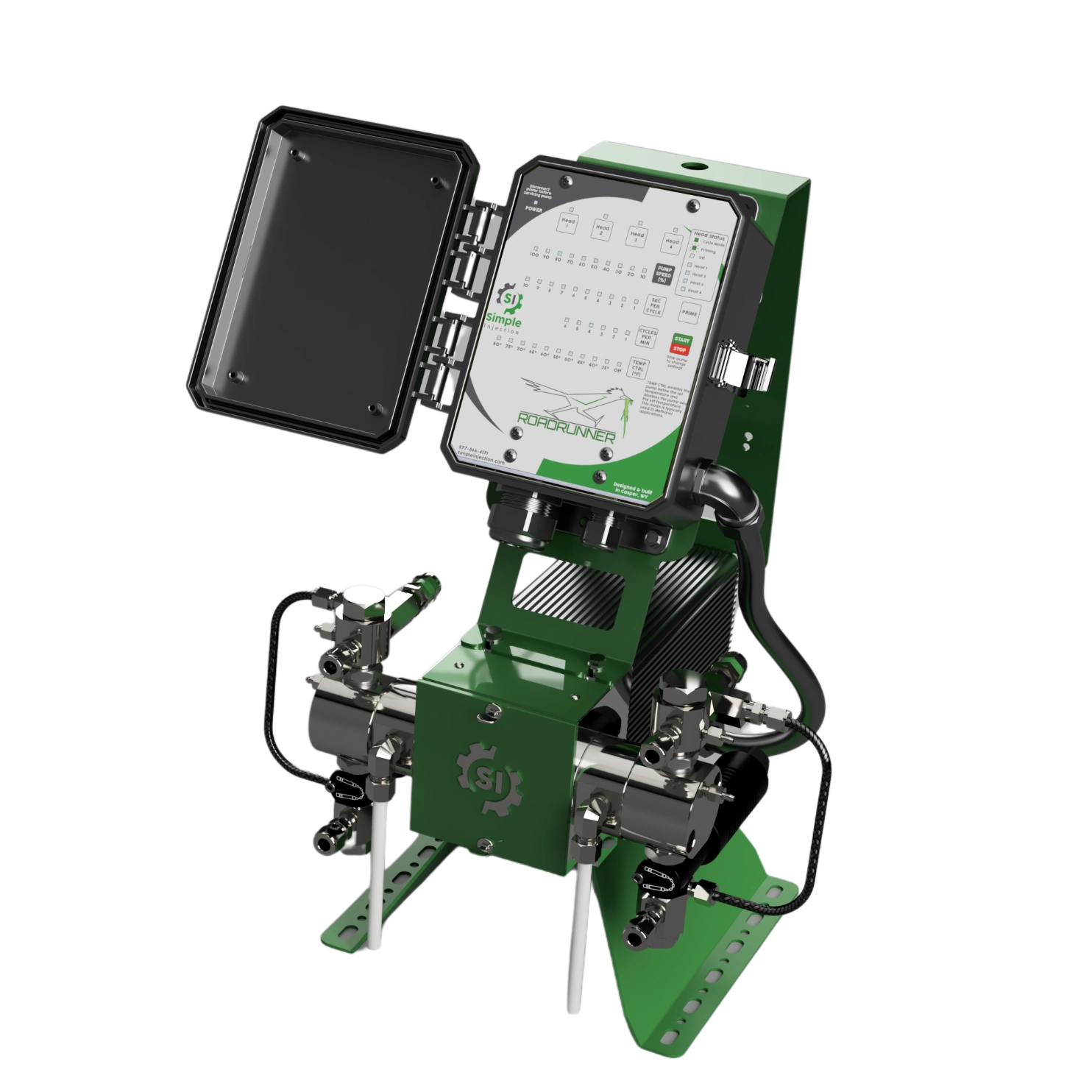

Roadrunner Pump System

Easy to use yet capable chemical injection controller with variable speed and temp. control.

Core Engineering Highlights

Hazardous Rating:Class 1 Division 2 (C1D2)
Power Options:120 VAC / Solar
Max Injection Volume (per head):17 GPD (1/4")37.5 GPD (3/8")70 GPD (1/2")600 GPD (1-1/2")
Drive Motor:120 Watt Brushless (1/4"–1/2") / 300 Watt Brushless (1-1/2")
Warranty:Motor: 3 years · Plungers: Lifetime
CAPABILITIES & MODES

Key Features & Operational Advantages

Class 1 Division 2 Certified

Suitable and safe for deployment in hazardous Class 1 Division 2 locations.

Tactile LED Button Interface

Field-hardened interface with direct push-button control for cycles, duration, and speed.

Cycle Mode Operation

Easily set the Pump Speed, Cycles per Minute(1-6), and Seconds per Cycle (1-10).

Integrated Temperature Control

Methanol freeze control with selectable temperature thresholds (35°F to 80°F).

Nunchucks Rate Control Compatible

Independent dual head operation allowing different rates and modes per head simultaneously.

RS-485 Modbus RTU

SCADA integration with 9600 baud Modbus RTU remote monitoring.

True Reliability

Brushless motor, PTFE/FFKM seals, solid ceramic plungers.

TECHNICAL SPECIFICATIONS

Engineering Parameters

Control Interface & Modes
• Dual Rate Control• Variable Speed• Cycles/Minute• Seconds/Cycle• Temperature Control
Max Injection Rate (per head)
• 1/4" Plunger: 17 GPD• 3/8" Plunger: 37.5 GPD• 1/2" Plunger: 70 GPD• 1-1/2" Plunger: 600 GPD
Max Discharge Pressure
• 1/4" Plunger: 6,000 PSI• 3/8" Plunger: 3,000 PSI• 1/2" Plunger: 1,250 PSI• 1-1/2" Plunger: 300 PSI
Max Injection Volume
• 1/4" Plunger: 17 GPD• 3/8" Plunger: 37.5 GPD• 1/2" Plunger: 70 GPD• 1-1/2" Plunger: 600 GPD
Drive Motor
• 1/4" Plunger: 120 Watt Brushless• 3/8" Plunger: 120 Watt Brushless• 1/2" Plunger: 120 Watt Brushless• 1-1/2" Plunger: 300 Watt Brushless
Power Requirements12/24 VDC Solar or 120 VAC (24 VDC nominal 10 Amp)
Fluid Ports & Connections
• Suction: 3/8" Compression• Discharge: 1/4” FNPT
Materials
• 316 Stainless Steel• Solid Ceramic Plungers• PTFE/FFKM Energized Seals• Super Duplex Suction Ball• Ceramic Discharge Ball
Warranty
• Motor: 3 years• Plungers: Lifetime
FAQ

Quick answers

What is the Roadrunner Pump System?

Roadrunner Pump System: a Class 1 Division 2 chemical injection pump for oil and gas. Easy to use yet capable chemical injection controller with variable speed and temp. control.

What pressure and flow rate can the Roadrunner Pump System handle?

Per head: 1/4" plunger up to 17 GPD at 6,000 PSI; 3/8" plunger up to 37.5 GPD at 3,000 PSI; 1/2" plunger up to 70 GPD at 1,250 PSI; 1-1/2" plunger up to 600 GPD at 300 PSI.

What power does the Roadrunner Pump System run on?

12/24 VDC Solar or 120 VAC (24 VDC nominal 10 Amp).

Is the Roadrunner Pump System certified for hazardous locations?

Yes. The Roadrunner Pump System is rated Class 1 Division 2 (C1D2).

What warranty comes with the Roadrunner Pump System?

The Roadrunner Pump System carries a 3-year warranty on the motor and a lifetime warranty on the plungers.

What are the Roadrunner Pump System's wetted materials?

316 Stainless Steel, Solid Ceramic Plungers, PTFE/FFKM Energized Seals, Super Duplex Suction Ball, Ceramic Discharge Ball.

RESOURCES

Technical Documentation & Manuals

Roadrunner Pump Controller User ManualOperation & Maintenance
Roadrunner Controller MODBUS User GuideSCADA & Automation
Standard Installation and Operating Manual (IOM)Mechanical & Electrical IOM
COMPATIBLE ADD-ONS

Expand This System

These add-ons integrate directly with the Roadrunner Pump System to add independent dual-head rate control or wireless tank level telemetry.

Dual-Head Rate Controller

Nunchucks Rate Control

Independent dual-head chemical injection rate & mode control without mechanical stroke adjustment.

View Add-On Specs
