What is a chemical injection skid?
A chemical injection skid packages everything needed to treat a well or flowline into one self-contained unit. Instead of sourcing a tank, containment, pump, power, and controls separately, you receive a single assembled system that is set on location, plumbed to the injection point, and started.
Skids are used for continuous and batch treatment with corrosion inhibitor, scale inhibitor, paraffin and asphaltene treatment, methanol and other hydrate inhibitors, biocide, H2S scavenger, and demulsifier.

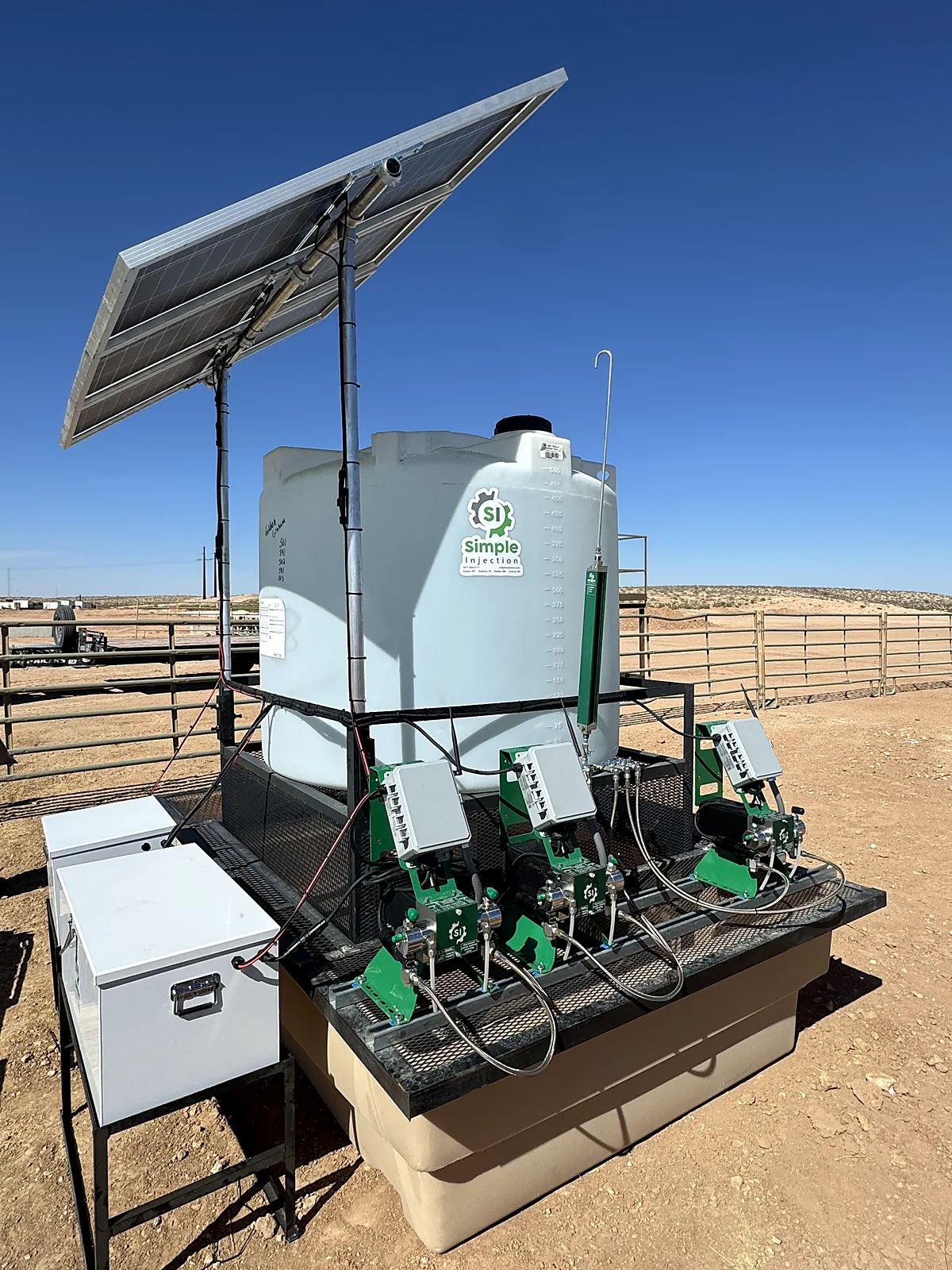

What is on a Simple Injection skid
- Chemical storage tank sized to your treatment volume and refill schedule
- Secondary containment base to catch leaks and meet site requirements
- Steel frame holding the tank, pumps, and controls up off the ground
- One or more Class 1 Division 2 SpeedGoat, Roadrunner, or Fox pumps

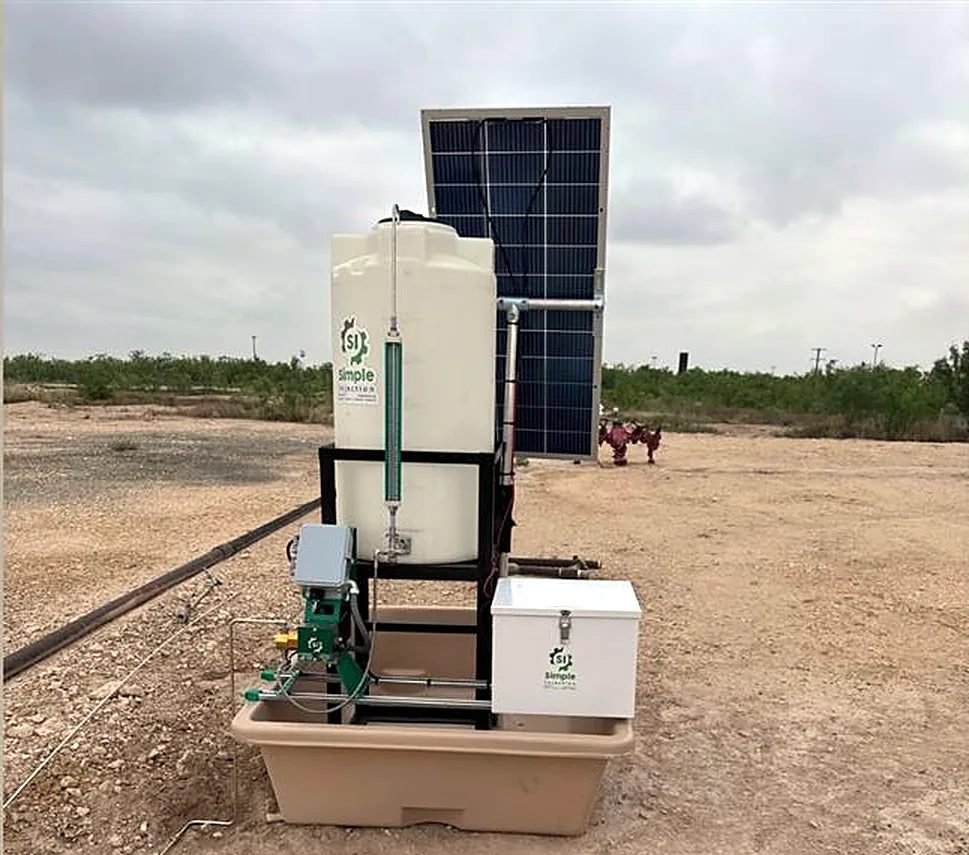

- Solar panel, battery, and charge control for remote locations, or 120 VAC where power is available
- Radar tank level monitoring and cellular telemetry on SpeedGoat systems, with no monthly fees

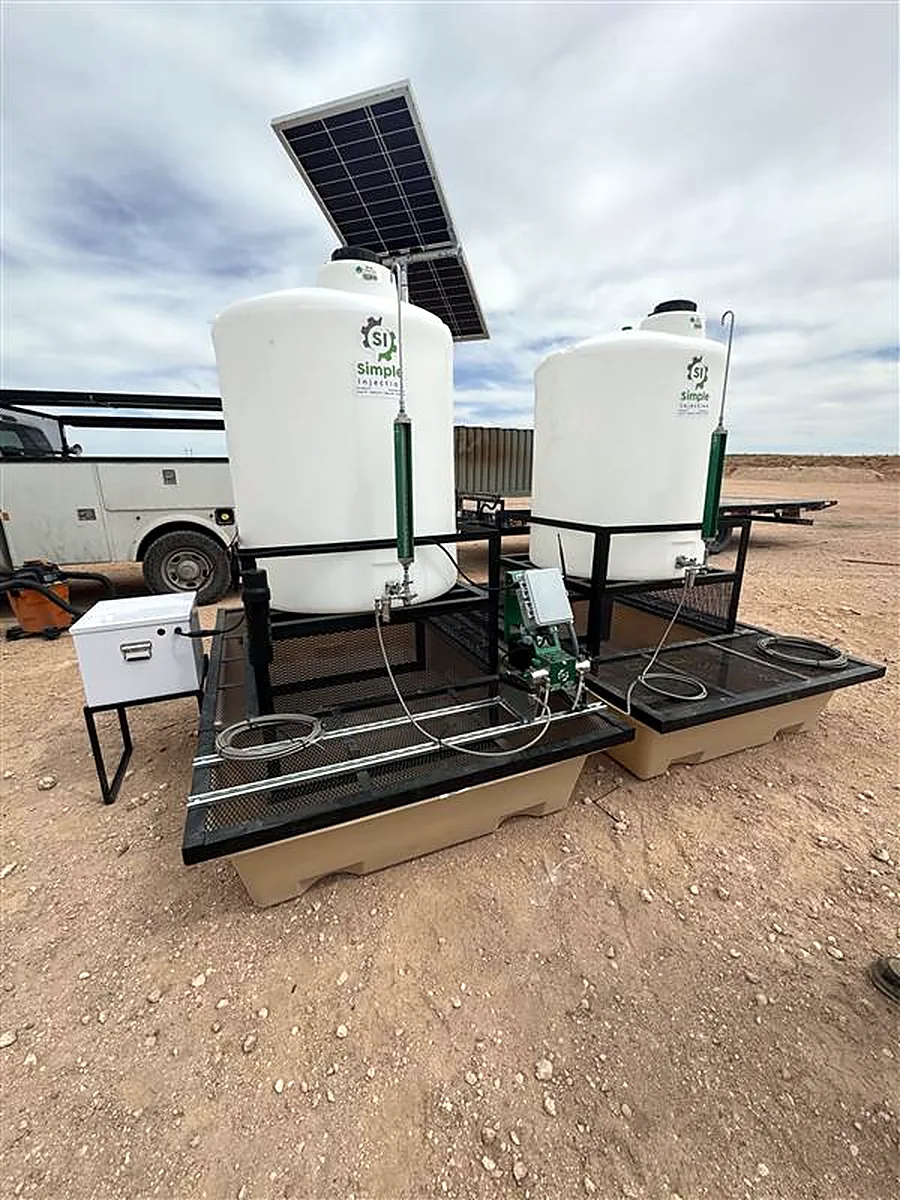

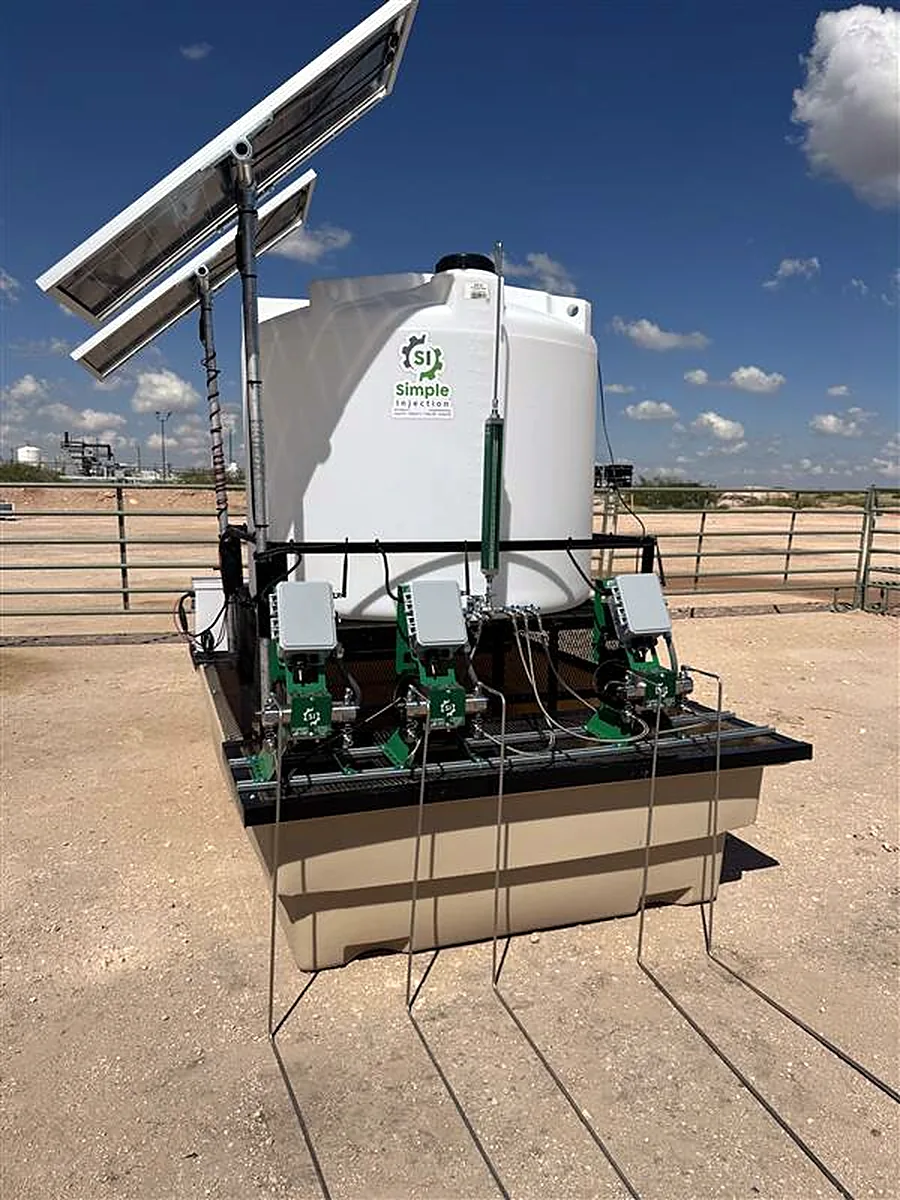

One skid, multiple chemicals or injection points
Skids can carry several pumps so one frame treats more than one chemical or more than one injection point. Dual-head pumps paired with Nunchucks rate control let each head run its own rate and mode, so a single pump can serve two treatments without adjusting stroke pins.
Built for oilfield delivery and service

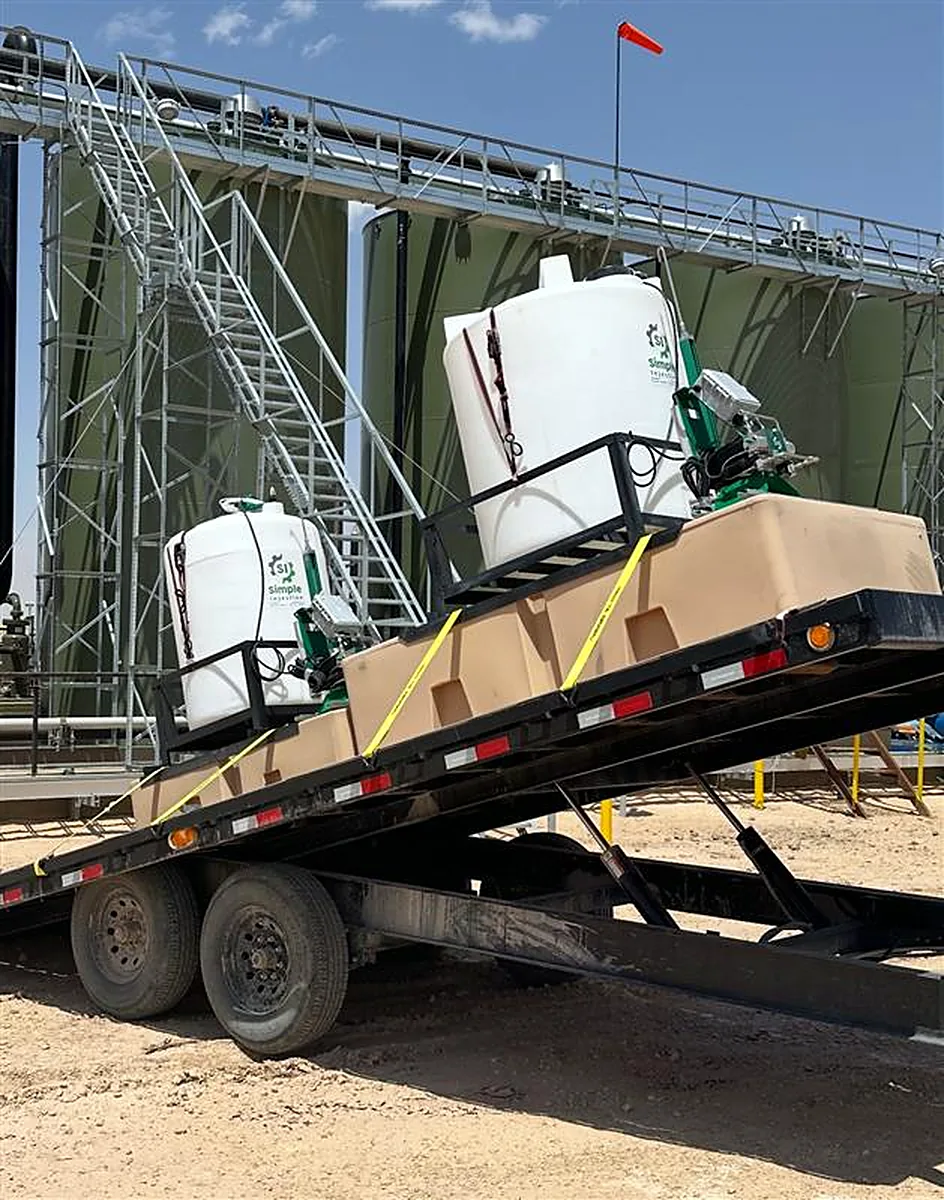

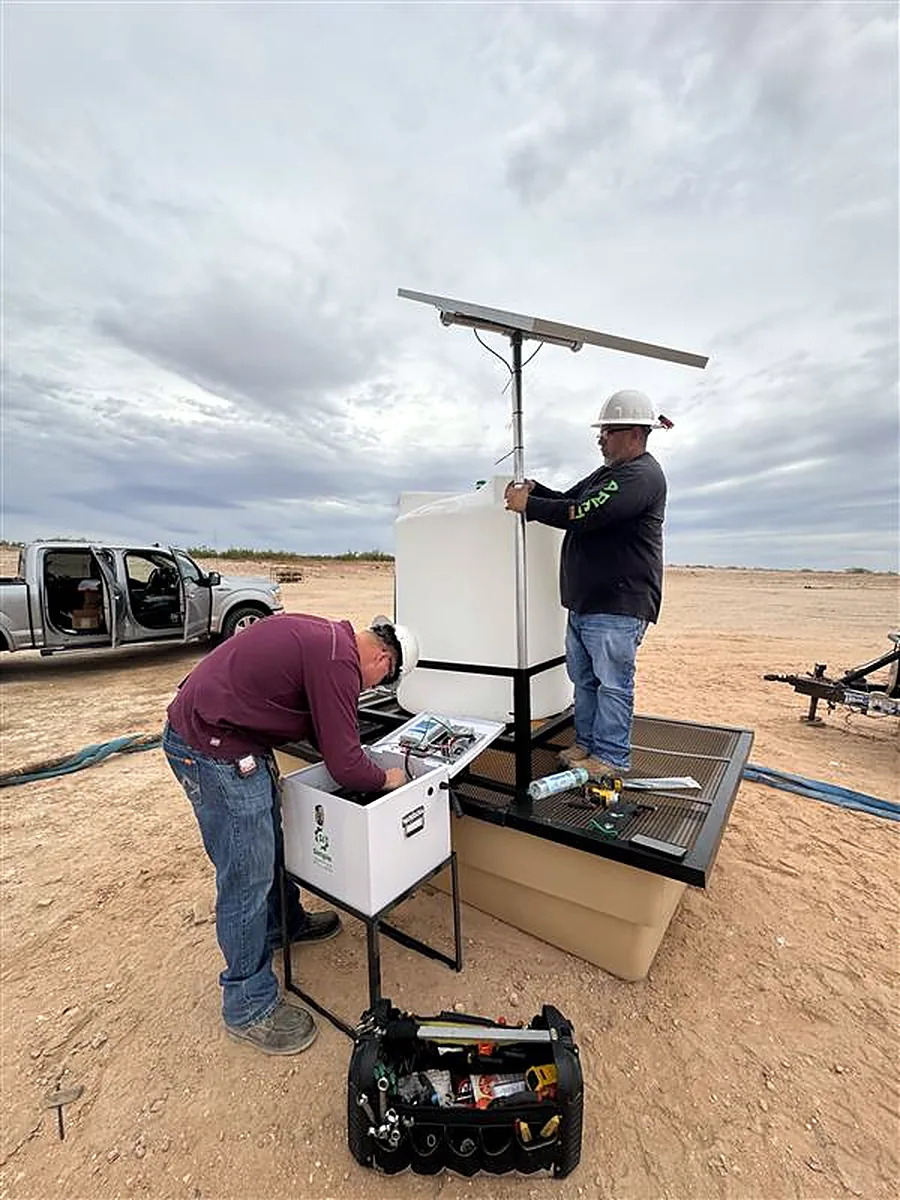

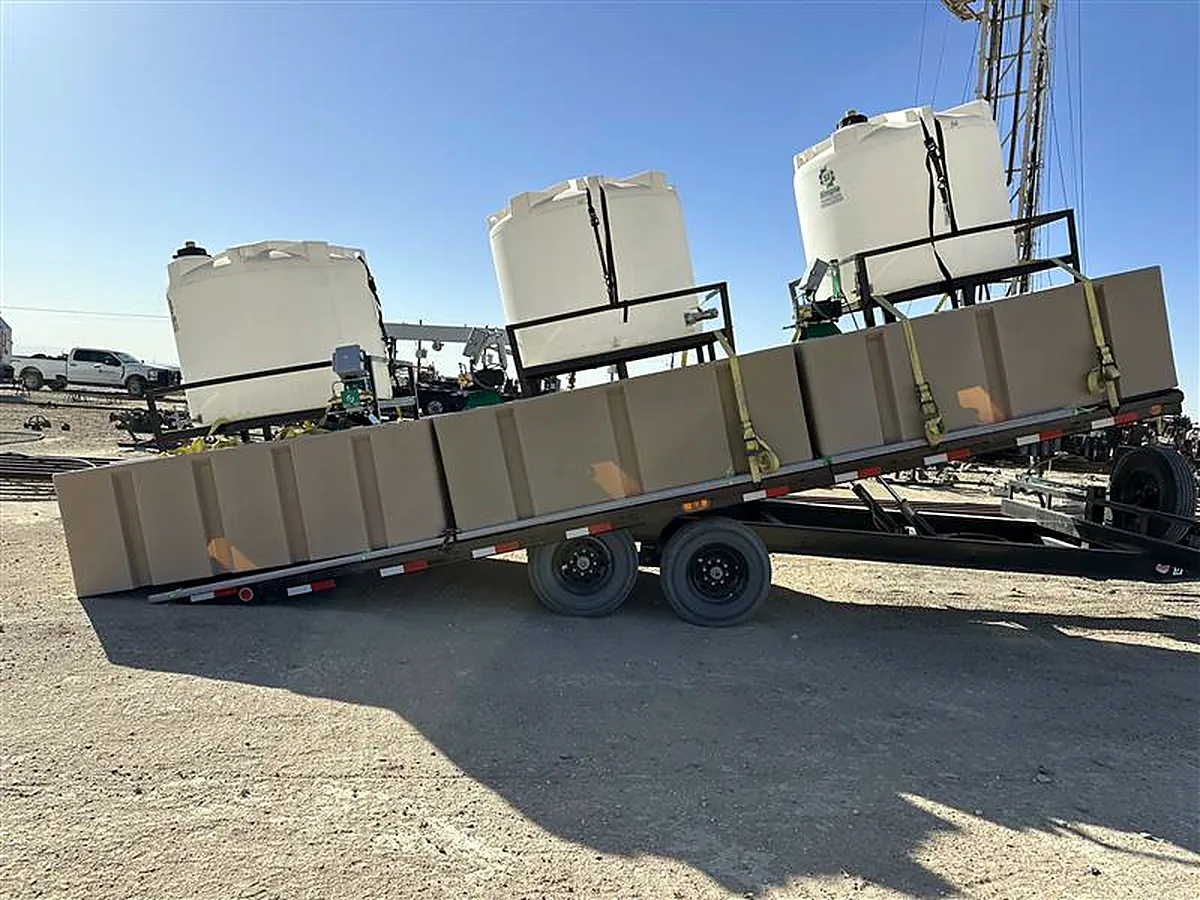

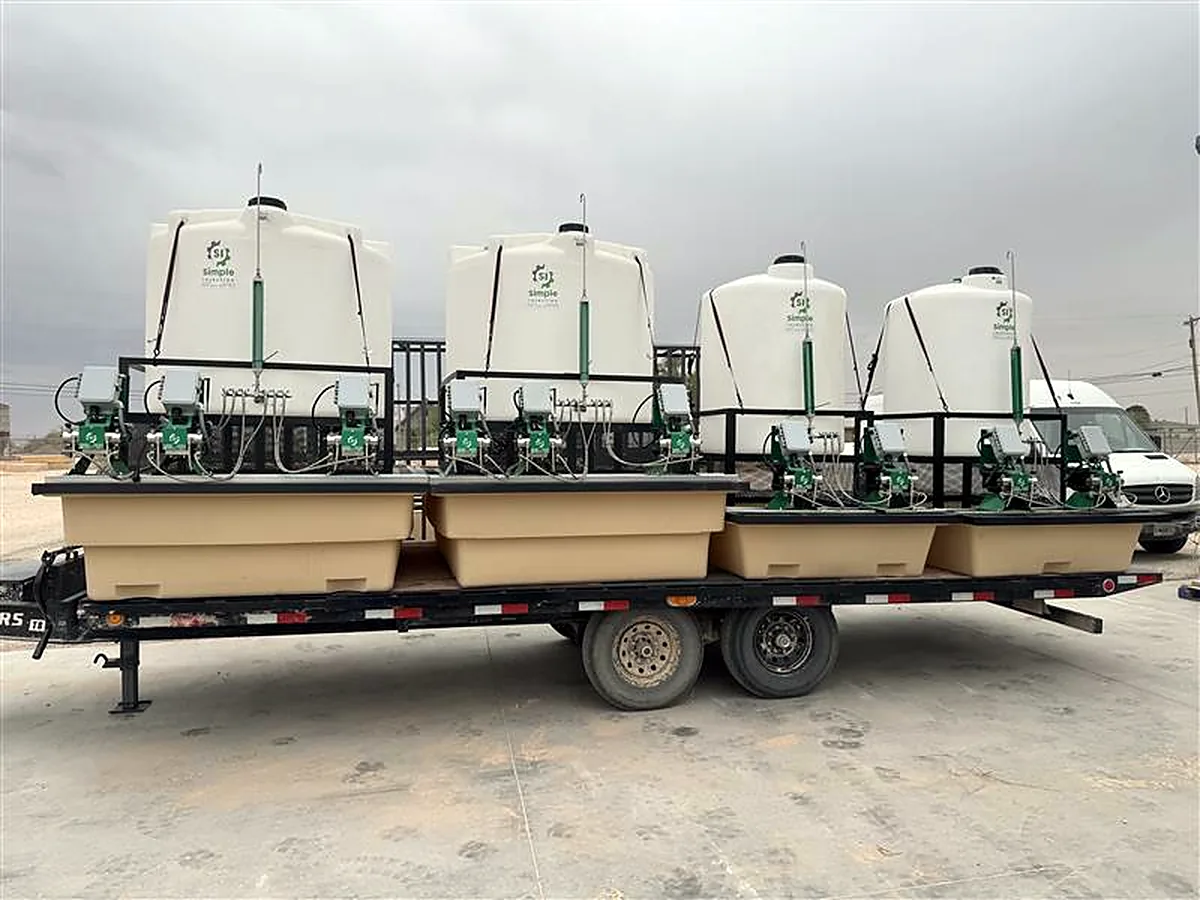

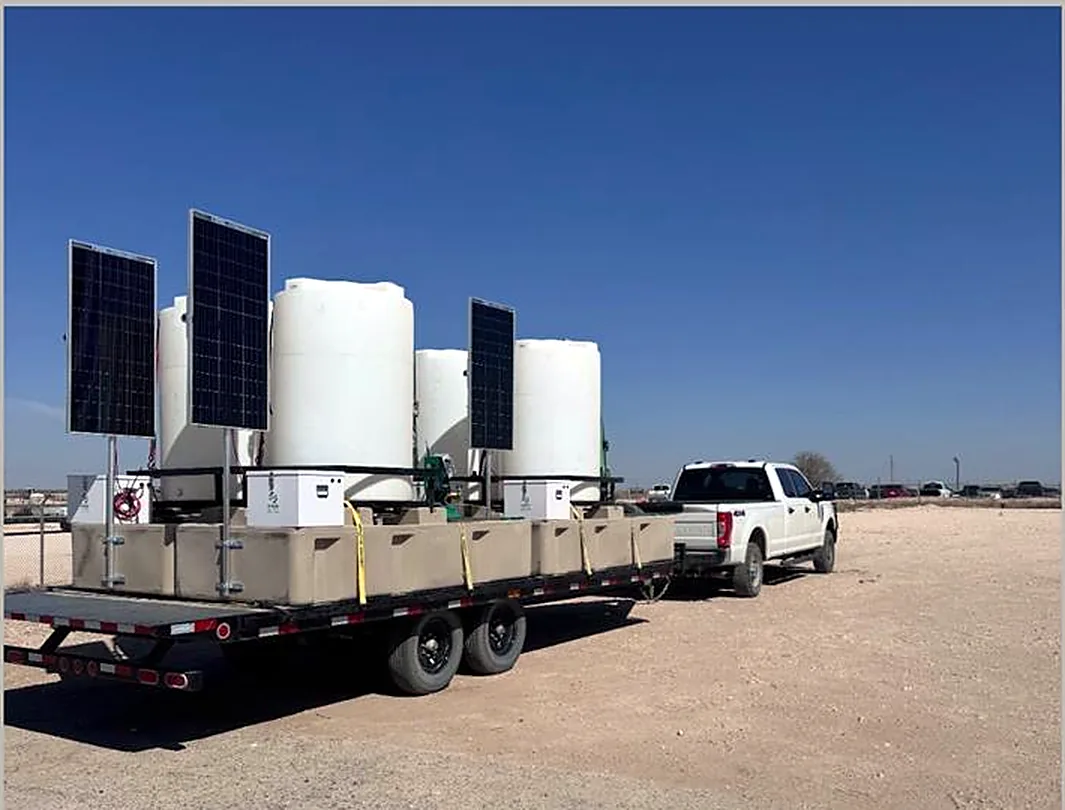

Skids ship on trailers fully assembled and are set on location ready to plumb. Controls, fill points, and pump heads stay accessible for commissioning and routine service.
Tell us your application
Skids are configured per job. Send us the chemical, injection rate, discharge pressure, power situation, and number of injection points, and we will quote the right tank, pump count, and options. Request a quote or call 877-866-4171.
Related products
SpeedGoat Smart Pump System
Simple, intelligent, remote control, tank level monitoring, and alarms. No monthly fees.
Roadrunner Pump System
Easy to use yet capable chemical injection controller with variable speed and temp. control.
Frequently asked questions
What is a chemical injection skid?
A chemical injection skid is a complete, pre-assembled injection system: chemical tank, secondary containment, pump or pumps, power, and controls on one frame, delivered ready to set and connect at the wellsite.
Can the skid run on solar power?
Yes. Skids are commonly built with a solar panel and battery for remote wells with no grid power. 120 VAC is also supported.
Can one skid inject more than one chemical?
Yes. Skids can carry multiple pumps, and dual-head pumps with Nunchucks rate control can run each head at its own rate and mode.
Can I monitor the skid remotely?
SpeedGoat skids include cellular telemetry, remote control, alarms, and radar tank level monitoring on the Simple Injection cloud dashboard, with no monthly fees.
How do I order a skid?
Request a quote with your chemical, rate, pressure, and power details. We configure tank size, pump count, and options to match the application.
